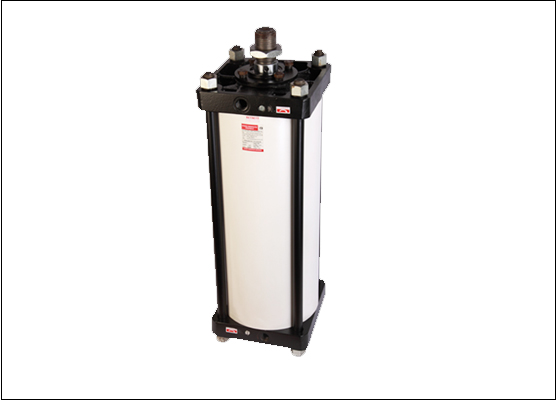

• Sizes available 5", 6", 8", 10", 12" and 14" bore diameter.
• Suitable for a wide range of applications.
• Available in all types of mountings and attachments.
• Single acting, Double, Magnetic, Double Ended, Tandem, Telescopic.
• Max stroke lengths upto 2000 mm.


Technical Characteristics :

• Media: Air
• Mountings & Accessories
• Seals : Nitrile, Viton on request
• Temperature: 00c to 80 0c (for Nitrile Seals)
• Piston : Up to 4" Aluminium & from 5" to 14" cast iron.
• Pressure: 0.5 to 10.2 kgf/cm2, high pressure on request.
• Piston rod : En-8 (ground & Hard Chrome Plated) SS304 on request
• End Covers : Up to 4" Aluminium die Casted & powder coated. From 5" to 14" close grain cast iron & powder coated.
• Cylinder Barrel : Up to 4" Dia. Brass, Aluminium, MS (Honed & Hard Chrome Plated) From 5" dia. To 14" dia. MS (Honed & Hard Chrome Plated) Powder Coated on request.
